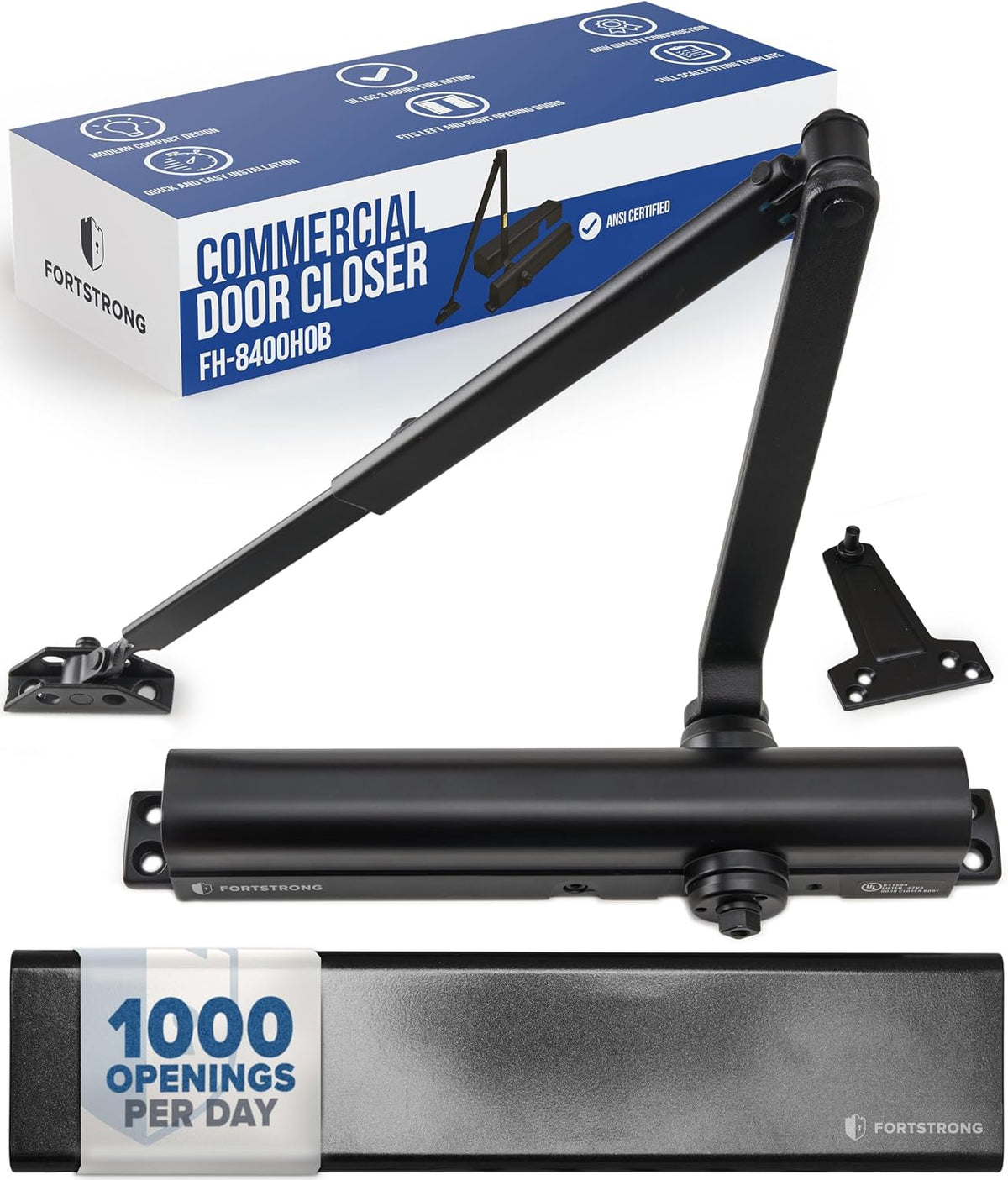

FH-8400HOB Heavy Duty Commercial Door Closer With Hold Open Function - Dark Bronze

In stock
  • Hold-open function keeps door open when required
  • Heavy-duty performance, 1000 openings/day
  • ADA compliant, UL & CUL UL10C listed
  • For doors from 99–330 lbs
  • Adjustable closing force, sweep & latch
  • Left or right-hand installation
$119.99
$119.99
Tax included. Shipping calculated at checkout.

Specifications

Model Family

FH-8400 Door Closer

Function

Closer with Hold Open Function

Finish
  • Matte

Opening Per Day

1000

Max Door Weight

330

Door Width

24" to 60"

Spring Power

Adjustable 1-6

Grading

ANSI/BHMA A156.4 Grade 1

Fire Rating

UL 10C - 3 Hour Fire Rating

Mounting Type
  • Regular arm

Door Handing
  • Both sides

Door Types
  • Single-leaf

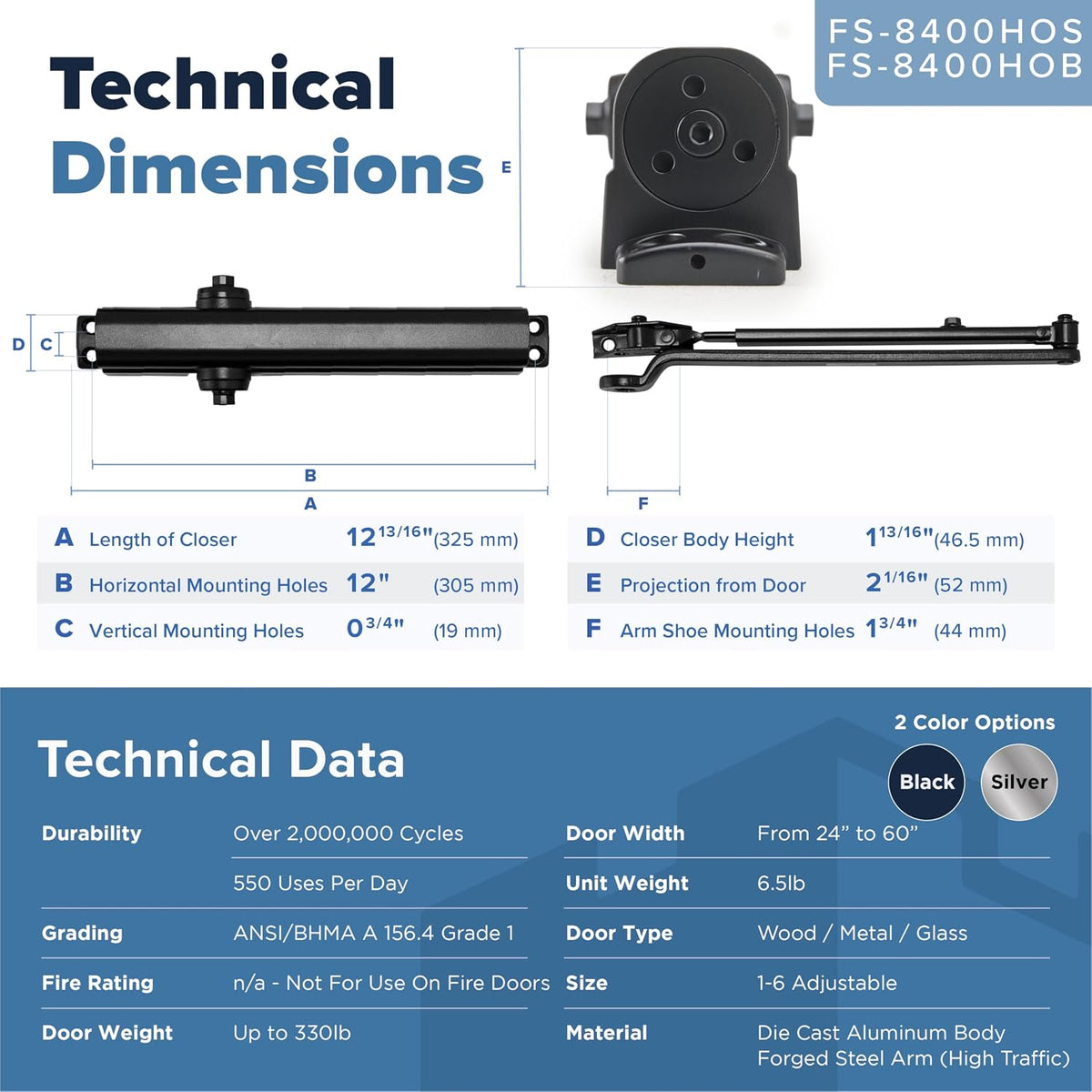

Dimensions

FH-8400HOB Heavy Duty Commercial Door Closer With Hold Open Function - Dark Bronze

Installation & Support

VIEW SUPPORT

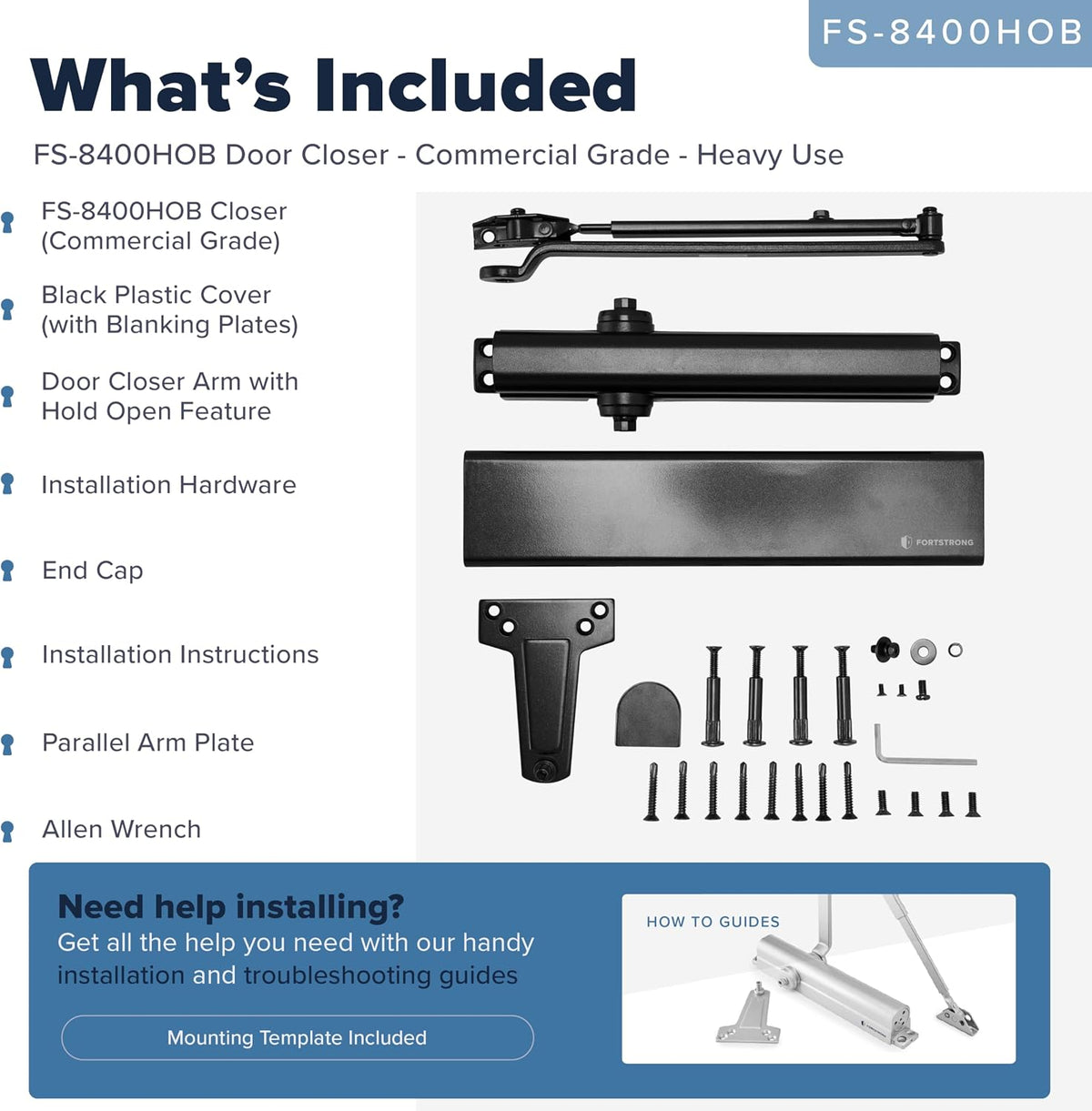

What's In The Box

FH-8400HOB Heavy Duty Commercial Door Closer With Hold Open Function - Dark Bronze — What’s included

Shipping & Returns

Incorporate tab content here

Built to last

Heavy Duty Performance

Engineered for high-traffic commercial environments, the FH-8400HOB combines adjustable closing control and optional Hold Open function with Grade 1 performance for dependable everyday operation.

  • high-traffic, Over

    1000

    Openings per day

  • Max door weight

    330

    Pounds (Lbs)

  • Max door width

    60"

    24" to 60"

Built For Demanding Environments.

  • Education

    Schools / Colleges

  • Healthcare

    Hospitals / Clinics

  • Commercial

    Offices / Retail

  • Industrial

    Warehouses / Facilities

CHOOSE THE RIGHT SETTING

Match the closer
to your door.

Select the recommended closer size according to your door.

Size Recommended Door Width Recommended Door Weight
Interior Door Exterior Door
1 24"–30" (610–762mm) — 33–66 lbs (15–30 kg)
2 30"–34" (762–865mm) — 66–99 lbs (30–45 kg)
3 34"–38" (865–965mm) 24"–30" (610–762mm) 99–143 lbs (45–65 kg)
4 38"–48" (965–1219mm) 30"–36" (762–914mm) 143–187 lbs (65–85 kg)
5 48"–54" (1219–1372mm) 36"–42" (914–1067mm) 187–264 lbs (85–120 kg)
6 54"–60" (1372–1524mm) 42"–48" (1067–1219mm) 264–330 lbs (120–150 kg)
↔ Swipe or scroll to view the full table

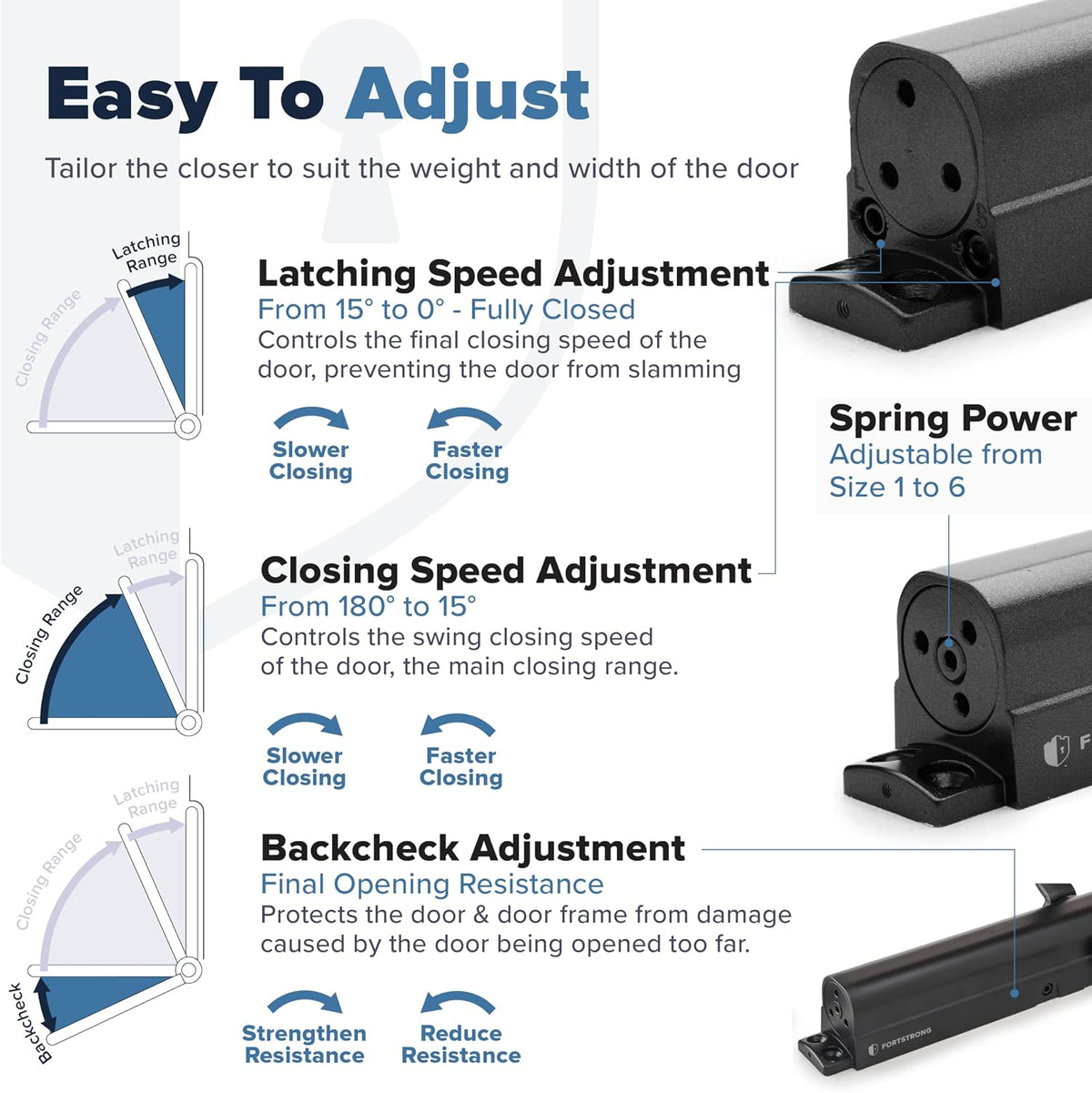

PRECISION CONTROL

Fine-tune every close.

SPRING POWER

Adjustable 1-6

CLOSING SPEED

Control the main closing cycle

LATCHING SPEED

Fine-tune the final close

BACKCHECK

Opening resistance control

THREE WAYS TO INSTALL

One closer. More flexibility.

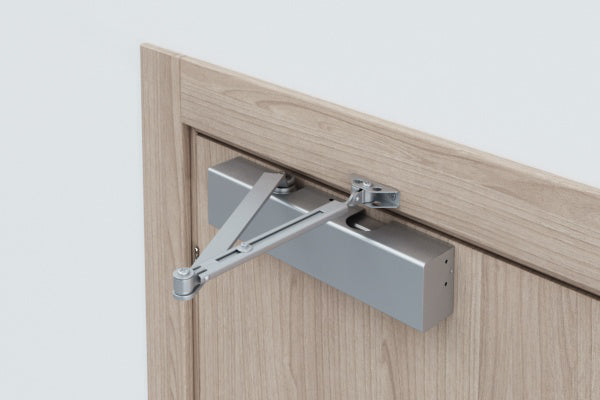

  • Regular — Pull Side

    Closer mounts to the door.
    Arm mounts to the frame.
    Used when you pull the door to open. The most common installation method and ideal for many interior doors.

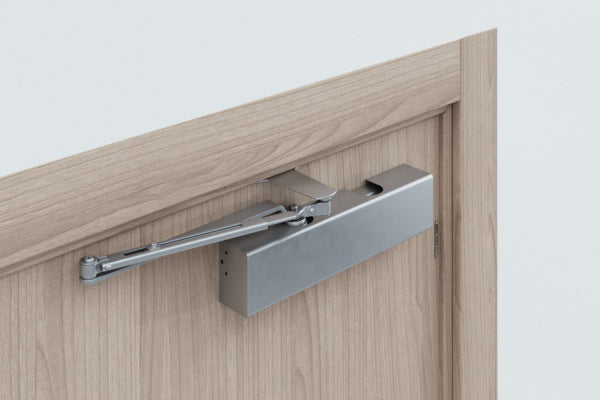

  • Parallel — Push Side

    Closer mounts to the door.
    Arm mounts under the frame.
    Used when you push the door to open. The arm sits beneath the frame for a cleaner, more compact appearance.

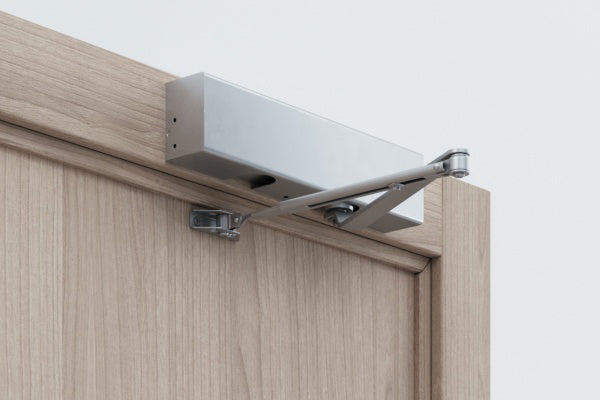

  • Top Jamb — Push Side

    Closer mounts to the frame.
    Arm mounts to the door.
    Used when you push the door to open. Often suited to applications where mounting the closer directly to the door is less practical.

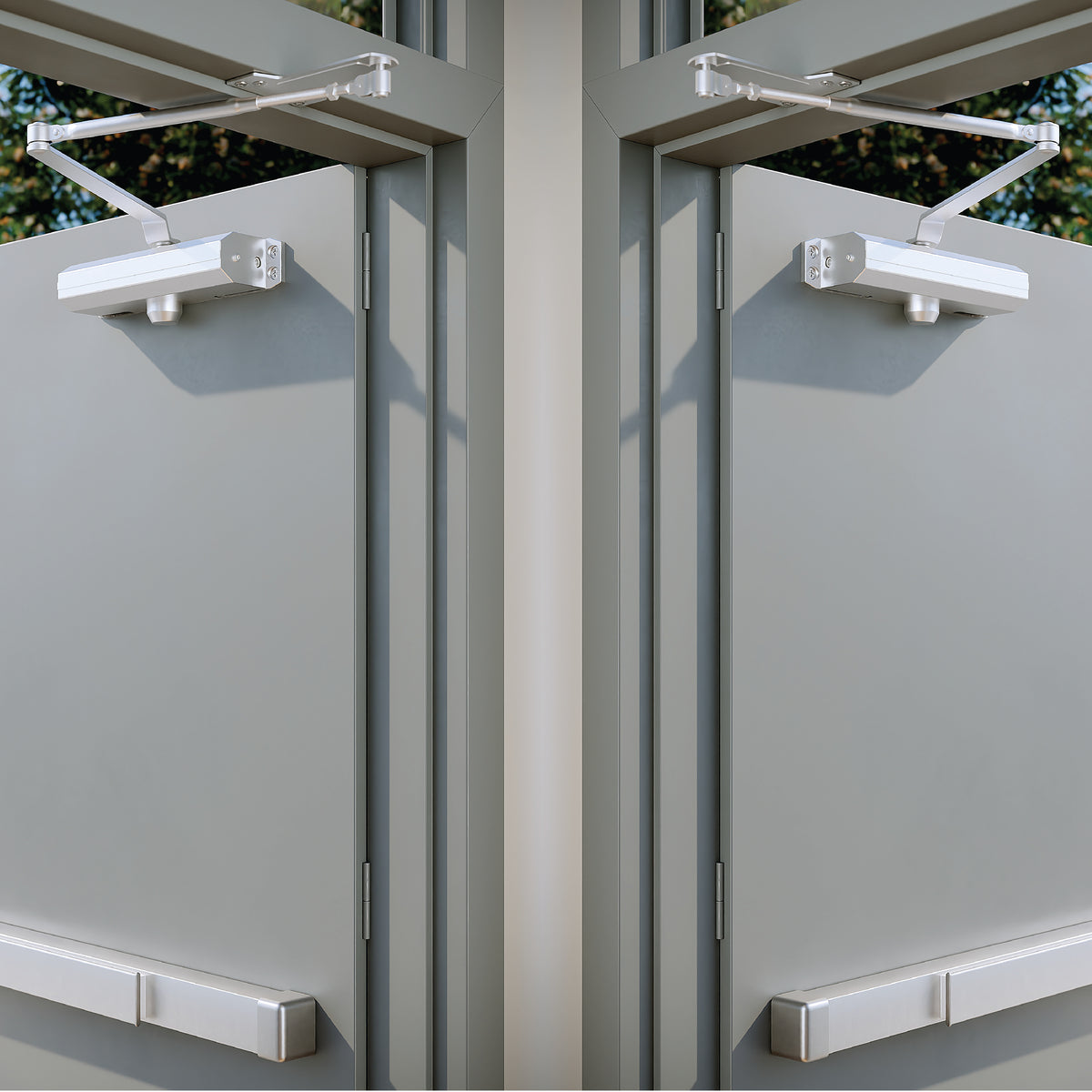

VERSATILE INSTALLATION

Fits left
or right.

Designed for left or right-hand installation across a wide range of commercial door configurations.

TESTED. CERTIFIED. TRUSTED.

Commercial-grade confidence.

UL & CUL Certified

UL 10C 3-hour fire rating

ANSI/BHMA

A156.4 Grade 1

ADA Compliant

Opening-force requirements

Commercial Grade

Built for high traffic usage

  • Dimensions

  • Box Contents

Where do you ship?

Available delivery destinations and shipping options are shown at checkout. If your address is not supported, contact us before ordering and we can confirm whether delivery is possible.

How long will my order take to arrive?

Delivery times depend on your location and the shipping option selected. Check the delivery information shown at checkout before placing your order. If you need an item by a particular date, contact us first so we can help you check the available options.

Do your products come with a warranty?

Warranty details can vary by product. Check the warranty information for your model for the applicable terms, coverage and exclusions. If you need help finding the right information, contact us with your product model and proof of purchase.

What is your return policy?

Contact us with your order details for help with return eligibility, time limits and instructions. If you’re unsure whether a product is suitable, contact us before ordering so we can help you choose.

How do I choose the right door closer?

Start with your door’s width, weight and how often it is used. Then check the product specifications for suitable door sizes, mounting options and available adjustments. If you are unsure which model to choose, contact us with your door measurements and a photo of the installation area.
